Y-strainer

Size Range:DN50-DN300

Pressure: PN16/PN25

Body Material:WCB

Features: High precision and high quality, The suitable medium includes water, oil, steam, sewage. It is mainly used in municipal construction, water conservancy projects, oil products, water supply and drainage, water treatment.

Get a Quote
Product Technical Catalogue
Product advantages

1. The valve bodies are all precision cast valve bodies with fine appearance and no trachoma. Each batch of castings has a furnace number mark to facilitate production tracking.


2. All Stainless Steel materials such as 304/316 are guaranteed to be tested and come with a material sheet.


3. The weight of the same caliber is heavier than that of the same valve.


4. The mesh adopts a full welding process, and the filter opening rate reaches 80%. The wear resistance and corrosion resistance are improved, while avoiding the filter from being washed away and the leakage of particulate matter.


5. Each valve body undergoes surface pickling and passivation treatment to make the appearance of the casting a uniform silver-white bright color, maintain the metallic luster, and improve corrosion resistance.


6. Every valve leaves the factory with double-layer pressure testing of shell and seal in accordance with national standards.


7. Pango  brand product quality is covered by China Pacific Insurance with two million dollars. Two years warranty, pay two back if one bad within two years. Any quality problems of the product itself, we will pay without conditions.


Parameters



Parameter Information:

1. Executive standard:

NameDesign and manufactureFace to face LengthPressure TestEnd Flange
Reference standardGB/T 14382-2008GB/T 12221-2005GB/T 14382-2008GB/T 9113-2010/ EN1092-1


2. Material of Main Parts:

Name1-Body2-Screen3-Bonnet
MaterialWCBSS304DI

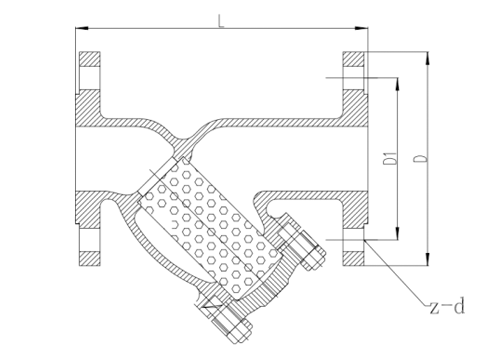

3. Dimensions:

SizeLDDkdnb
DNNPS
151/2"13956514414
203/4"1501057514416
251"1601158514416
321-1/4"18014010019418
401-1/2"20015011019418
502''23016512519420
652-1/2''29018514519420
803''31020016019822
1004''35022018019824
1255''40025021019826
1506''48028524023826
2008''600340295231230
25010''730405355261232
30012''850460410261232
35014''980520470261636
40016''1100580525301638
45018''1200640585302042
50020''1250715650332046
60024"1450840770362052
