ANSI Standard Stainless Steel Y-strainer

Size Range:DN15-DN600

Pressure: 150LB

Body Material:SS304

Features: High precision and high quality, The suitable medium includes water, oil, steam, sewage. It is mainly used in municipal construction, water conservancy projects, oil products, water supply and drainage, water treatment.

Get a Quote
Product advantages

1. The valve bodies are all precision cast valve bodies with fine appearance and no trachoma. Each batch of castings has a furnace number mark to facilitate production tracking.


2. All Stainless Steel materials such as 304/316 are guaranteed to be tested and come with a material sheet.


3. The weight of the same caliber is heavier than that of the same valve.


4. The mesh adopts a full welding process, and the filter opening rate reaches 80%. The wear resistance and corrosion resistance are improved, while avoiding the filter from being washed away and the leakage of particulate matter.


5. Each valve body undergoes surface pickling and passivation treatment to make the appearance of the casting a uniform silver-white bright color, maintain the metallic luster, and improve corrosion resistance.


6. Every valve leaves the factory with double-layer pressure testing of shell and seal in accordance with national standards.


7. Pango  brand product quality is covered by China Pacific Insurance with two million dollars. Two years warranty, pay two back if one bad within two years. Any quality problems of the product itself, we will pay without conditions.

Parameters



Parameter Information:

1. Executive standard:

NameDesign and manufactureFace to face LengthPressure TestEnd Flange
Reference standardMFGASME B16.10API598ASME B16.5


2. Material of Main Parts:

Name1-Body2-Screen3-Bonnet
MaterialSS304SS304SS304

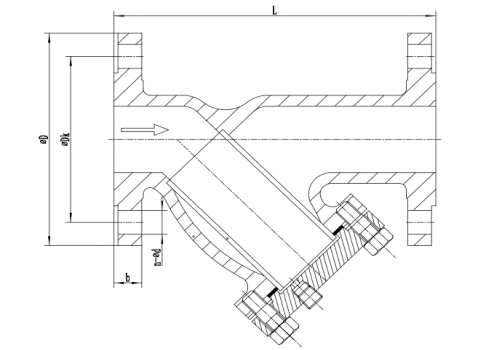

3. Dimensions:

SizeLDDkdn
DNNPS (Inch)
151/2"1349060.3164
203/4"14210069.9164
251"15011079.4164
321-1/4"16811588.9164
401-1/2"20012598.4164
502''215150120.7184
652-1/2''250180139.7184
803''282190152.4184
1004''310230190.5188
1255''350255215.9228
1506''393280241.3228
2008''473345298.5228
25010''5384053622612
30012''643485431.82612
35014''680535476.33012
40016''755595539.83016
45018''853635577.93316
50020''9007006353320
60024"1060815749.33620
