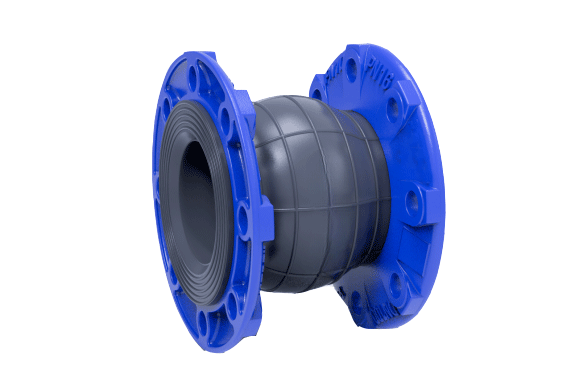

Ductile Iron Flange Rubber Joint

Size Range:DN50-600

Pressure: PN10/16/150LB

Seat Material:EPDM

Flanged Material:Ductile Iron

Features: Flexible rubber joints, abbreviated as rubber joints, are composed of fabric-reinforced rubber parts and metal flanges. They are used as joints for isolating and reducing noise and displacement in pipelines.
It is a type of pipeline joint with high elasticity, high air tightness, resistance to media, and resistance to weather conditions. By absorbing and transmitting vibrations, it reduces the noise and vibration of pipelines and mechanical equipment, thereby improving the stability and service life of the equipment. In pipelines with large vibrations, rubber joints can effectively reduce the noise and vibration of the pipelines, ensuring the stability and safety of the pipelines.

Get a Quote

Product advantages Parameters Related Products Company News

Product advantages

1. The flange is made of ductile iron and has a spheroidization rate of grade 3.

2. The flange is sprayed with international renowned brand Akzo epoxy resin.

3. The spherical body is made of imported EPDM rubber and is vulcanized using our own factory process, ensuring controllable quality and long service life. It also has the British WRAS certification.

4. The thickness of both ends of the rubber ball is increased by 10mm and a steel wire ring is added inside, making the ball more resistant to detachment and twisting.

5. The number of cord fabric inside the ball exceeds the national standard, making it more resistant to pressure and tension.

Parameters

Optional Configuration
	Sphere
	EPDM/NBR/VITON

Parameter Information：
1.Executive Standard：
Name	Design and Manufacturing	End Connections	Structure Length	Test Standard
Reference Standard	GB/T 26121	GB/T 17241.6	GB/T 26121	GB/T 26121
2.Information on Main Components：
Name	Flange	Sphere
Material and Description	DI	EPDM

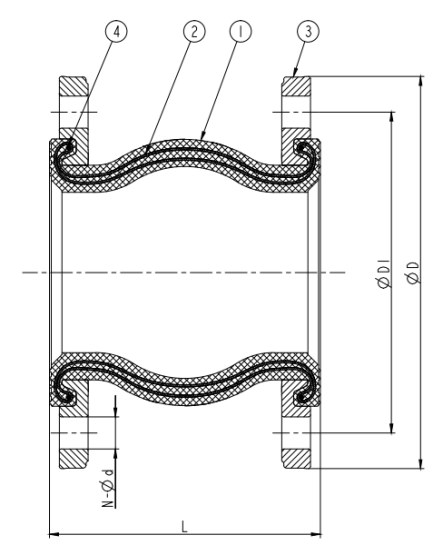

3.Size Information：
Intended Size			PN16		150LB
DN	NPS（Inch）	L	D1	N-Φd	D1	N-Φd
50	2''	105	125	4-18	120.7	4-19
65	2 1/2''	115	145	4-18	139.7	4-19
80	3''	135	160	8-18	152.4	4-19
100	4''	150	180	8-18	190.5	8-19
125	5''	165	210	8-18	215.9	8-22
150	6''	180	240	8-23	241.3	8-22
200	8''	210	295	12-23	298.5	8-22
250	10''	230	355	12-25	362	12-26
300	12''	250	410	12-25	431.8	12-26
350	14''	260	470	16-25	476.3	12-29
400	16''	260	525	16-30	539.8	16-29
450	18''	260	585	20-30	577.9	16-32
500	20''	260	650	20-34	635	20-32
600	24''	260	770	20-41	749.3	20-35
