Threaded Rubber Expansion Joint

Size Range:DN15-50

Pressure: PN10/16

Body Material:EPDM

Features: The rubber ball is made of EPDM rubber. It is resistant to tensile, compressive, aging, high temperature and low temperature.It can be used in municipal construction, hydraulic engineering, electricity, water supply and drainage, water treatment and chemical industry.

Get a Quote
Product Technical Catalogue
Product advantages

1、The rubber joint uses Ethylene-Propylene-Diene Monomer (EPDM), the natural rubber content is more than 40%, of which tensile, compression, aging resistance, high temperature resistance, low temperature resistance, more than 2 years than conventional rubber.


2、The quantity of lining in the rubber  exceeds CJ/T208-2005 standard.


3、The double ball design has great displacement and large vibration and noise reduction effect.


4、Each product will be inspected the appearance, hardness, tightness, pressure and resistance of flanges-pulling off before leaving factory.


5、Pango brand products are covered by China Pacific Insurance,with two years warranty.We will pay two back if one bad in two years .Any problem of the product itself,we will pay without conditions.


Parameters


Parameter Information

1.Standard:

ItemDesign and maufacureFace to FaceTesting Pressure
StandardGB/T 26121-2010GB/T 26121-2010GB/T 26121-2010


2.Materials:

Item1-Connector2-Traveller3-Rubber
MaterialMalleable iron Q235EPDM/Natural Rubber/NBR/Viton

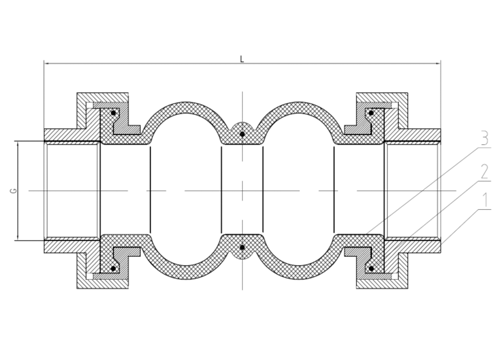

3.Demensions:

Nominal DimensionGL
DNNPS(inch)
151/2''1/2''165
203/4''3/4''165
251''1''180
321-1/4''1-1/4''200
401-1/2''1-1/2''210
502''2''220
