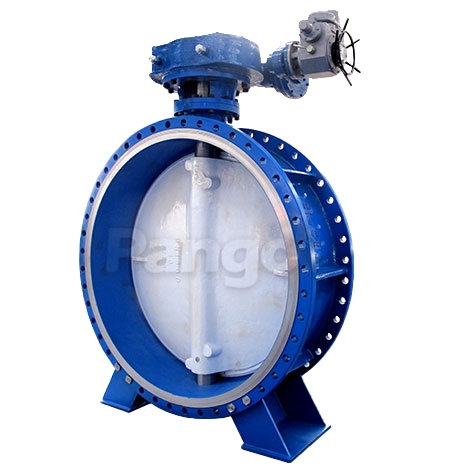

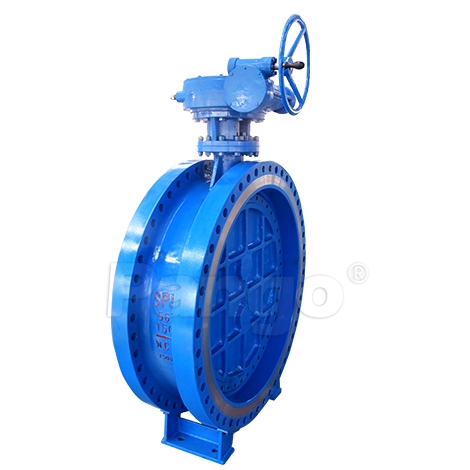

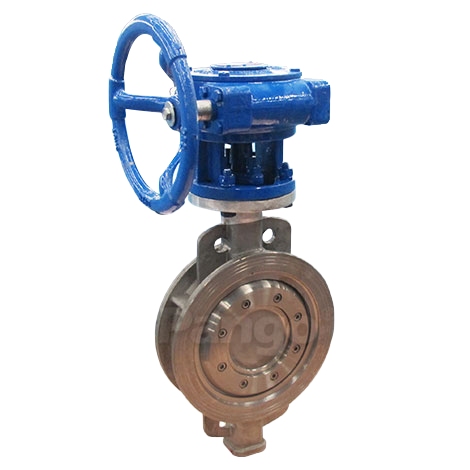

Size Range:DN50-DN1400
Pressure: 150LB/300LB/600LB
Body Material:WCB
Seat Material:13Cr
Disc Material:WCB
Stem Material:2Cr13
Size Range:DN50-DN1400
Pressure: 150LB/300LB/600LB
Body Material:WCB
Seat Material:13Cr
Disc Material:WCB
Stem Material:2Cr13
Product Technical Catalogue
Parameter Information：
1. Executive standard：
| Name | Design and manufacture | Face to face Length | Pressure Test | Top Flange | End Flange |
| Reference Standard | API609 | API609 | API598 | ISO 5211 | ASME B16.5 |
2. Dimensions:
| 150LB | |||||||
| Size | L | D | D1 | D2 | b | f | N-d |
| 50 | 108 | 150 | 120.5 | 92 | 18 | 2 | 4-19 |
| 80 | 114 | 190 | 152.5 | 127 | 22 | 2 | 4-19 |
| 100 | 127 | 230 | 190.5 | 157 | 24 | 2 | 8-19 |
| 125 | 140 | 255 | 216 | 186 | 24 | 2 | 8-22 |
| 150 | 140 | 280 | 241.5 | 216 | 26 | 2 | 8-22 |
| 200 | 152 | 345 | 295.5 | 270 | 29 | 2 | 8-22 |
| 250 | 165 | 405 | 362 | 324 | 31 | 2 | 12-25 |
| 300 | 178 | 485 | 432 | 381 | 32 | 2 | 12-25 |
| 350 | 190 | 535 | 476 | 413 | 35 | 2 | 12-29 |
| 400 | 216 | 595 | 540 | 470 | 37 | 2 | 16-29 |
| 450 | 222 | 635 | 578 | 533 | 40 | 2 | 16-32 |
| 500 | 229 | 700 | 635 | 584 | 43 | 2 | 20-32 |
| 600 | 267 | 815 | 749.5 | 692 | 48 | 2 | 20-35 |
| 700 | 292 | 835 | 795.3 | 762 | 43.7 | 2 | 44-22 |
| 800 | 318 | 940 | 900.1 | 864 | 45.3 | 2 | 48-22 |
| 900 | 330 | 1055 | 1009.6 | 972 | 51.5 | 2 | 44-26 |
| 1000 | 410 | 1175 | 1120.8 | 1080 | 54.8 | 2 | 44-30 |
| 1200 | 470 | 1390 | 1335.1 | 1289 | 64 | 2 | 44-33 |
| 1400 | 530 | 1600 | 1543 | 1492 | 72 | 2 | 60-33 |
| 300LB | |||||||
| Size | L | D | D1 | D2 | b | f | N-d |
| 50 | 108 | 165 | 127 | 92 | 23 | 2 | 8-19 |
| 80 | 114 | 210 | 168.5 | 127 | 29 | 2 | 8-22 |
| 100 | 127 | 255 | 200 | 157 | 32 | 2 | 8-22 |
| 125 | 140 | 280 | 235 | 186 | 35 | 2 | 8-22 |
| 150 | 140 | 320 | 270 | 216 | 37 | 2 | 12-22 |
| 200 | 230 | 380 | 330 | 270 | 42 | 2 | 12-26 |
| 250 | 250 | 445 | 387.5 | 324 | 48 | 2 | 16-29 |
| 300 | 270 | 520 | 451 | 381 | 51 | 2 | 16-32 |
| 350 | 290 | 585 | 514.5 | 413 | 54 | 2 | 20-32 |
| 400 | 310 | 650 | 571.5 | 470 | 58 | 2 | 20-35 |
| 450 | 330 | 710 | 628.5 | 533 | 61 | 2 | 24-35 |
| 500 | 350 | 775 | 686 | 584 | 64 | 2 | 24-35 |
| 600 | 390 | 915 | 813 | 692 | 70 | 2 | 24-41 |
| 700 | 430 | 920 | 857.2 | 787 | 87.5 | 2 | 36-36 |
| 800 | 470 | 1055 | 977.9 | 902 | 101.6 | 2 | 32-42 |
| 900 | 510 | 1170 | 1089 | 1010 | 101.6 | 2 | 32-45 |
| 1000 | 550 | 1275 | 1190.6 | 1114 | 114.3 | 2 | 40-45 |
| 1200 | 630 | 1510 | 1416 | 1327 | 127 | 2 | 40-51 |
| 600LB | |||||||
| Size | L | D | D1 | D2 | b | f | N-d |
| 50 | 150 | 165 | 127 | 92 | 26 | 7 | 8-19 |
| 80 | 180 | 210 | 168.5 | 127 | 32 | 7 | 8-22 |
| 100 | 190 | 255 | 216 | 157 | 38 | 7 | 8-26 |
| 125 | 200 | 280 | 267 | 186 | 45 | 7 | 8-29 |
| 150 | 210 | 320 | 292 | 216 | 48 | 7 | 12-29 |
| 200 | 230 | 380 | 349 | 270 | 56 | 7 | 12-32 |
| 250 | 250 | 445 | 432 | 324 | 64 | 7 | 16-35 |
| 300 | 270 | 520 | 489 | 381 | 67 | 7 | 20-35 |
| 350 | 290 | 585 | 527 | 413 | 70 | 7 | 20-39 |
| 400 | 310 | 650 | 603 | 470 | 76 | 7 | 20-42 |
| 450 | 330 | 710 | 654 | 433 | 83 | 7 | 20-45 |
| 500 | 350 | 775 | 724 | 584 | 89 | 7 | 24-45 |
| 600 | 390 | 915 | 838 | 692 | 102 | 7 | 24-51 |
