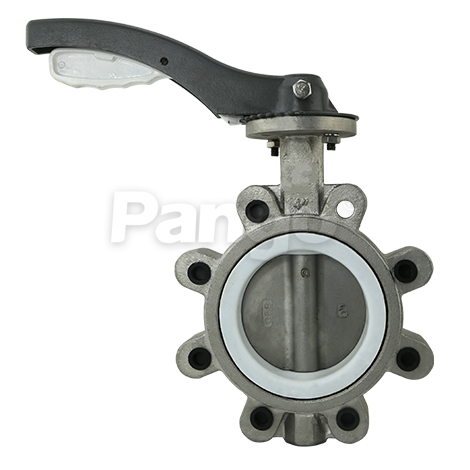

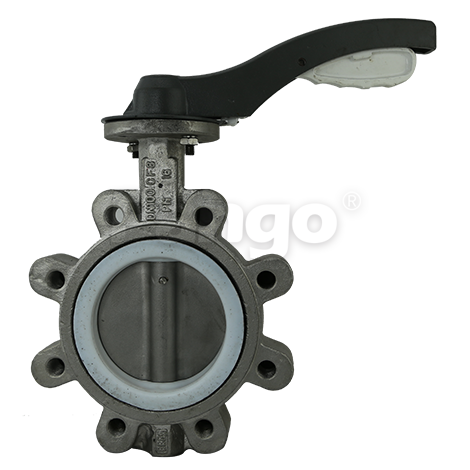

- With-pin Type Lug Butterfly Valve
- Size Range: DN50~DN200
- Pressure: PN10/ PN16
- Body Material: Cast Iron, Ductile Iron
- Seat Material: NBR, EPDM, VITON, PTFE
- Disc Material: Ductile Iron, WCB, CF8,CF8M, Al-bronze C958
- Stem Material: SS416, SS304, SS316
- Features: Single Eccentric Disc-Shaft
Anti-Blow Out Stem
Bi-Directional
Fire safe Design
Low Friction Body Seat
Zero Leakage
Product advantages
Parameters
Parameter Information:
1. Executive standard：
| Name | Design and manufacture | Face to face Length | Pressure Test | Top Flange | End Flange |
| Reference standard | API 609, MSS SP-67 | API 609, MSS SP-67, DIN3202, BS EN558-1 | API 598 | ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16 | ISO5211 |
2. Dimensions:
| SIZE | A | B | C | L | ANSI 150B | DIN PN 10 | DIN PN 16 | JIS 10K | ISO 5211 | Top Flange | |||||||
| mm | in | ΦK | N-Φd | ΦK | N-Φd | ΦK | N-Φd | ΦK | N-Φd | ΦD | ΦD1 | N-ΦG | |||||
| 40 | 1.5" | 67 | 141 | 32 | 33 | 98.5 | 4-Φ16 | 110 | 4-Φ18 | 110 | 4-Φ18 | 105 | 4-Φ19 | 65 | 50 | 4-Φ8 | F05 |
| 50 | 2" | 67 | 141 | 32 | 43 | 120.6 | 4-Φ19 | 125 | 4-Φ18 | 125 | 4-Φ18 | 120 | 4-Φ19 | 65 | 50 | 4-Φ8 | F05 |
| 65 | 2½" | 75 | 151 | 32 | 46 | 139.7 | 4-Φ19 | 145 | 4-Φ18 | 145 | 4-Φ18 | 140 | 4-Φ19 | 65 | 50 | 4-Φ8 | F05 |
| 80 | 3" | 95 | 160 | 32 | 46 | 152.4 | 4-Φ19 | 160 | 8-Φ18 | 160 | 8-Φ18 | 150 | 8-Φ19 | 65 | 50 | 4-Φ8 | F05 |
| 100 | 4" | 111 | 180 | 32 | 52 | 190.5 | 8-Φ19 | 180 | 8-Φ18 | 180 | 8-Φ18 | 175 | 8-Φ19 | 90 | 70 | 4-Φ10 | F07 |
| 125 | 5" | 129 | 193 | 32 | 56 | 215.9 | 8-Φ22.4 | 210 | 8-Φ18 | 210 | 8-Φ18 | 210 | 8-Φ23 | 90 | 70 | 4-Φ10 | F07 |
| 150 | 6" | 142 | 207 | 32 | 56 | 241.3 | 8-Φ22.4 | 240 | 8-Φ22 | 240 | 8-Φ22 | 240 | 8-Φ23 | 90 | 70 | 4-Φ10 | F07 |
| 200 | 8" | 170 | 240 | 45 | 60 | 298.4 | 8-Φ22.4 | 295 | 8-Φ22 | 295 | 12-Φ22 | 290 | 12-Φ23 | 125 | 102 | 4-Φ12 | F10 |
| 250 | 10" | 206 | 270 | 45 | 68 | 361.9 | 12-Φ25.4 | 350 | 12-Φ22 | 355 | 12-Φ26 | 355 | 12-Φ25 | 125 | 102 | 4-Φ12 | F10 |
| 300 | 12" | 238 | 316 | 45 | 78 | 431.8 | 12-Φ25.4 | 400 | 12-Φ22 | 410 | 12-Φ26 | 400 | 16-Φ25 | 125 | 102 | 4-Φ12 | F10 |
| 350 | 14" | 267 | 368 | 45 | 78 | 476.2 | 12-Φ28.4 | 460 | 16-Φ22 | 470 | 16-Φ26 | 445 | 16-Φ25 | 125 | 102 | 4-Φ12 | F10 |
| 400 | 16" | 298 | 400 | 51 | 86 | 539.7 | 16-Φ28.4 | 515 | 12-Φ26 | 525 | 16-Φ30 | 510 | 16-Φ27 | 175 | 140 | 4-Φ18 | F14 |
| 450 | 18" | 318 | 422 | 51 | 105 | 577.8 | 16-Φ31.8 | 565 | 20-Φ26 | 585 | 20-Φ30 | 565 | 20-Φ27 | 175 | 140 | 4-Φ18 | F14 |
| 500 | 20" | 349 | 479 | 57 | 130 | 635 | 20-Φ31.8 | 620 | 20-Φ26 | 650 | 20-Φ33 | 620 | 20-Φ27 | 175 | 140 | 4-Φ18 | F14 |
| 600 | 24" | 410 | 562 | 70 | 152 | 749.3 | 20-Φ35.1 | 725 | 20-Φ30 | 770 | 20-Φ36 | 730 | 24-Φ33 | 210 | 165 | 4-Φ22 | F16 |
