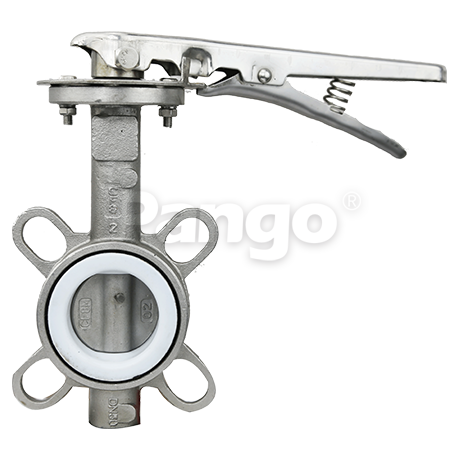

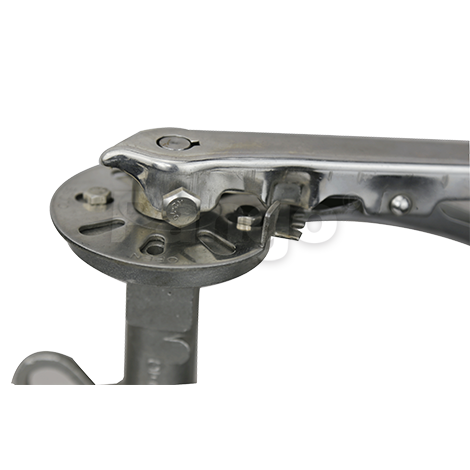

- Stainless Steel Wafer Butterfly Valve
- Size Range: DN50-DN200
- Pressure: 5K/10K/150LB
- Body Material: SS304/SS316
- Seat Material: NBR/EPDM/VITON/PTFE
- Disc Material: CF8/CF8M
- Stem Material: SS416/SS304/SS316
- Features: Single Eccentric Disc-Shaft
Anti-Blow Out Stem
Bi-Directional
Fire safe Design
Low Friction Body Seat
Zero Leakage
1.The length of the short structure can save raw materials and installation space, and also effectively support the strength of the pipeline.
2.The valve block is the correct movement of the gate, extrusion fast, to ensure effective sealing valve.
3.Triangle support material, guarantee the required mechanical properties.
4.According to different working conditions demand design V, triangle, or five corners and other ports, in order to meet the needs of various flow regulation.
5.No groove at the bottom to make sure no slag and full bore flow.
6.Pango valve strict implementation of the API598 experimental standard, for each product to implement 100% positive and negative double pressure test, guarantee delivery to customers is 100% qualified products.
7.Pango Group dedicated to the dedication of the valve for 23 years, with professional production, sales, research and after-sales team,we are your strong backing.
Parameter Information:
Dimensions:
SIZE | A | B | C | L | ANSI 150B | DIN PN 10 | DIN PN 16 | JIS 10K | ISO 5211 | Top Flange | |||||||
mm | in | ΦK | N-Φd | ΦK | N-Φd | ΦK | N-Φd | ΦK | N-Φd | ΦD | ΦD1 | N-ΦG | |||||
40 | 1.5" | 67 | 141 | 32 | 33 | 98.5 | 4-Φ16 | 110 | 4-Φ18 | 110 | 4-Φ18 | 105 | 4-Φ19 | 65 | 50 | 4-Φ8 | F05 |
50 | 2" | 67 | 141 | 32 | 43 | 120.6 | 4-Φ19 | 125 | 4-Φ18 | 125 | 4-Φ18 | 120 | 4-Φ19 | 65 | 50 | 4-Φ8 | F05 |
65 | 2½" | 75 | 151 | 32 | 46 | 139.7 | 4-Φ19 | 145 | 4-Φ18 | 145 | 4-Φ18 | 140 | 4-Φ19 | 65 | 50 | 4-Φ8 | F05 |
80 | 3" | 95 | 160 | 32 | 46 | 152.4 | 4-Φ19 | 160 | 8-Φ18 | 160 | 8-Φ18 | 150 | 8-Φ19 | 65 | 50 | 4-Φ8 | F05 |
100 | 4" | 111 | 180 | 32 | 52 | 190.5 | 8-Φ19 | 180 | 8-Φ18 | 180 | 8-Φ18 | 175 | 8-Φ19 | 90 | 70 | 4-Φ10 | F07 |
125 | 5" | 129 | 193 | 32 | 56 | 215.9 | 8-Φ22.4 | 210 | 8-Φ18 | 210 | 8-Φ18 | 210 | 8-Φ23 | 90 | 70 | 4-Φ10 | F07 |
150 | 6" | 142 | 207 | 32 | 56 | 241.3 | 8-Φ22.4 | 240 | 8-Φ22 | 240 | 8-Φ22 | 240 | 8-Φ23 | 90 | 70 | 4-Φ10 | F07 |
200 | 8" | 170 | 240 | 45 | 60 | 298.4 | 8-Φ22.4 | 295 | 8-Φ22 | 295 | 12-Φ22 | 290 | 12-Φ23 | 125 | 102 | 4-Φ12 | F10 |
250 | 10" | 206 | 270 | 45 | 68 | 361.9 | 12-Φ25.4 | 350 | 12-Φ22 | 355 | 12-Φ26 | 355 | 12-Φ25 | 125 | 102 | 4-Φ12 | F10 |
300 | 12" | 238 | 316 | 45 | 78 | 431.8 | 12-Φ25.4 | 400 | 12-Φ22 | 410 | 12-Φ26 | 400 | 16-Φ25 | 125 | 102 | 4-Φ12 | F10 |
350 | 14" | 267 | 368 | 45 | 78 | 476.2 | 12-Φ28.4 | 460 | 16-Φ22 | 470 | 16-Φ26 | 445 | 16-Φ25 | 125 | 102 | 4-Φ12 | F10 |
400 | 16" | 298 | 400 | 51 | 86 | 539.7 | 16-Φ28.4 | 515 | 12-Φ26 | 525 | 16-Φ30 | 510 | 16-Φ27 | 175 | 140 | 4-Φ18 | F14 |
450 | 18" | 318 | 422 | 51 | 105 | 577.8 | 16-Φ31.8 | 565 | 20-Φ26 | 585 | 20-Φ30 | 565 | 20-Φ27 | 175 | 140 | 4-Φ18 | F14 |
500 | 20" | 349 | 479 | 57 | 130 | 635 | 20-Φ31.8 | 620 | 20-Φ26 | 650 | 20-Φ33 | 620 | 20-Φ27 | 175 | 140 | 4-Φ18 | F14 |
600 | 24" | 410 | 562 | 70 | 152 | 749.3 | 20-Φ35.1 | 725 | 20-Φ30 | 770 | 20-Φ36 | 730 | 24-Φ33 | 210 | 165 | 4-Φ22 | F16 |
