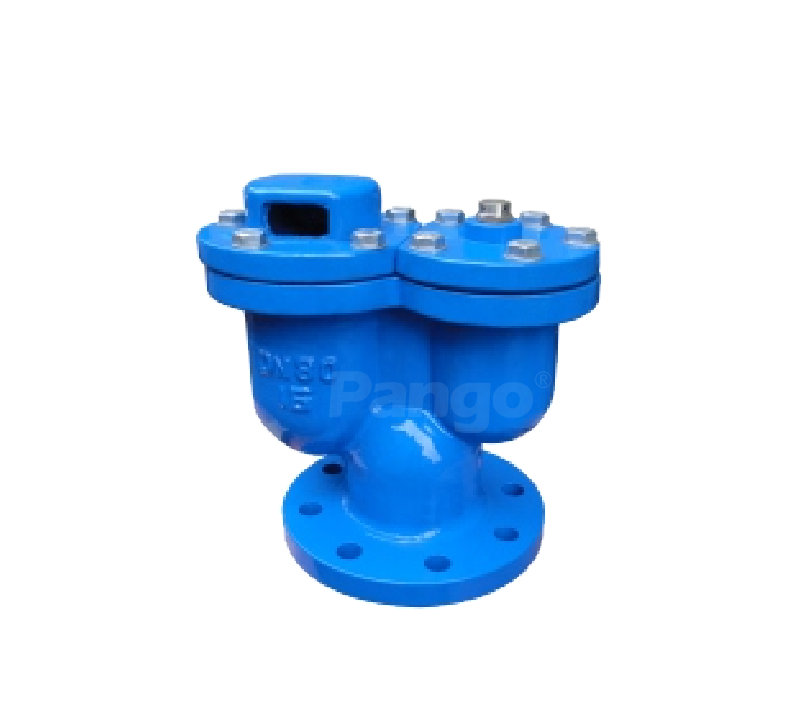

Double Buckle Exhaust Valve

Size Range:DN40-DN300

Pressure: PN10/16

Body Material:DI

Seat Material:EPDM

Disc Material:304

Flanged Material:DI

Get a Quote
Product advantages
  1. The valve body adopts QT450-10 material, spheroidization rate 3, stronger mechanical properties, tensile strength 450Mpa, elongation of more than 10%;

  2. The valve body and internal parts are processed by precision CNC machine tools to ensure accuracy;

  3. The float is made of 304 stainless steel with higher corrosion resistance;

  4. Each valve packaging before ultrasonic cleaning, eliminate dirt and particulate impurities in the valve body to ensure the cleanliness of the valve;

  5. Each valve has undergone strict pressure testing.

Parameters


1. Executive standard
NameDesign and
manufacture
Face to face
Length
Pressure Test



As perGB/T 18693-2002HG/T 20592-2009API 598-2004



2. Material of Main Parts:
NameBodySealingFloating Ball



MaterialQT450/WCB/CF8EPDM/NBR201/304/316

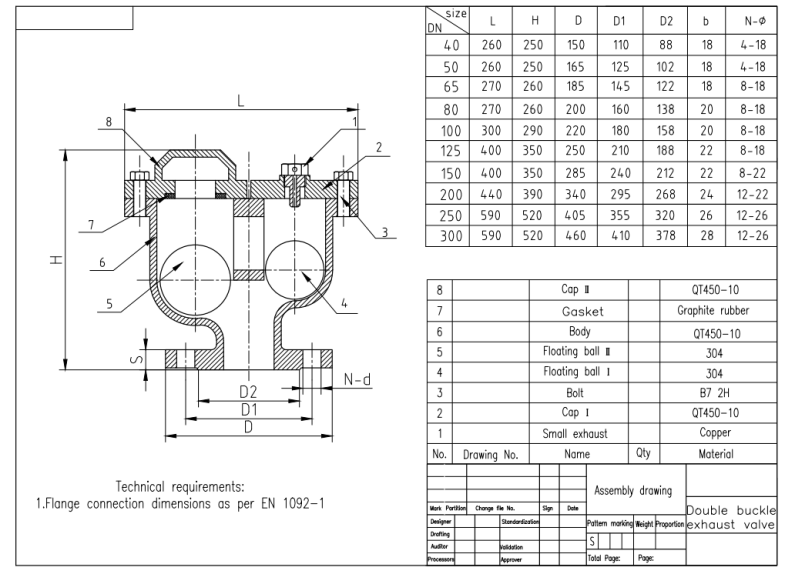

3. Dimensions:
DNNPS(Inch)HΦDΦD1N-φd

401  1/2''2501501104-18

50 2''2501651254-18

65 2  1/2''2601851458-18

80 3''2602001608-18

100 4''2902201808-18

125 5''3502502108-18

150 6''3502852408-22

200 8''39034029512-22

250 10''52040535512-26

300 12''52046041012-26
