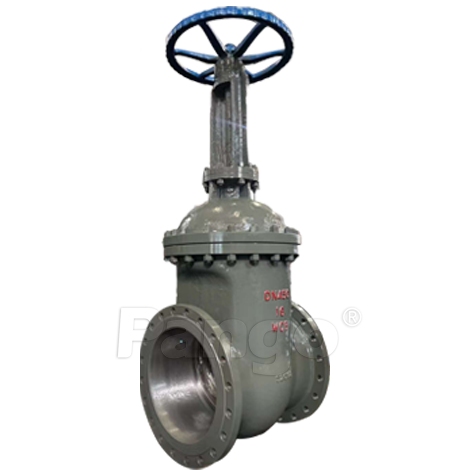

Product advantages

1. Precision casting valve body. Standard WCB material, fine appearance, no trachoma. Each batch of castings have furnace number.

2. Use CNC lathes to machine internals. After the machining, the valve body is shot blasted twice, and the appearance is beautiful.

3. The same diameter valve has heavier weight compared with other manufacturers.

4. the valve seat material is cr-based stainless steel + surfacing 507 molybdenum, increasing the wear resistance of the valve seat.

5. The valve cover and the valve stem are in contact with the valve to prevent the leakage.

6. The valve stem is processed by cyclone milling to avoid the difficulty of switching due to the bending of the valve stem.

7. Each valve is factory tested for pressure according to national standards.

8. From the raw material to the finished product, every process has strict inpection.

9. Pango brand product quality is covered by China Pacific Insurance with two million dollars. Two years warranty, pay two back if one bad within two years. Any quality problems of the product itself, we will pay without conditions.

Parameters

Parameter Information：

1. Executive standard：

Name	Design and manufacture	Face to face Length	Pressure Test	End Flange
Reference Standard	GB/T 12234-2008	GB/T 12221-2005	JB/T 9092-1999	GB/T 9113-2010/EN1092-1

2. Material of Main Parts:

Name	1-Body	2-Seat	3-Wedge	4-Stem	5-Handwheel
Material	WCB	13Cr/STL	WCB	2Cr13	DI

3. Dimensions：

PN10
DN	NPS (inch)	L	D	D1	D2	b	f	z-Φd
15	1/2"	130	95	65	45	12	2	4-14
20	3/4"	150	105	75	55	14	2	4-14
25	1''	160	115	85	65	14	2	4-14
32	1-1/4''	180	135	100	78	16	2	4-18
40	1-1/2''	166	145	110	85	16	3	4-18
50	2''	180	160	125	100	16	3	4-18
65	2-1/2''	195	180	145	120	18	3	4-18
80	3''	210	196	160	135	18	3	4-18
100	4''	230	215	180	155	20	3	8-18
125	5''	256	245	210	185	22	3	8-18
150	6''	280	280	240	210	22	3	8-23
200	8''	330	335	295	265	22	3	8-23
250	10''	380	390	350	320	24	3	12-23
300	12''	420	440	400	368	26	3	12-23
350	14''	450	500	460	428	26	4	16-23
400	16''	480	565	515	482	26	4	16-26
450	18''	510	615	656	532	26	4	20-26
500	20''	540	670	620	585	28	4	20-26
600	24''	600	780	725	685	28	5	20-30
700	28"	660	896	840	800	30	5	24-30

PN16
DN	NPS (inch)	L	D	D1	D2	b	f	z-Φd
15	1/2"	130	95	65	45	16	2	4-14
20	3/4"	150	105	75	55	16	2	4-14
25	1''	160	115	85	65	16	2	4-14
32	1-1/4''	180	135	100	78	18	2	4-18
40	1-1/2''	200	145	110	85	18	3	4-18
50	2''	250	160	125	100	18	3	4-18
65	2-1/2''	265	180	145	120	18	3	4-18
80	3''	280	195	160	135	20	3	8-18
100	4''	300	215	180	155	20	3	8-18
125	5''	325	245	210	185	22	3	8-18
150	6''	350	280	240	210	24	3	8-23
200	8''	400	335	295	265	24	3	12-23
250	10''	450	405	355	320	26	3	12-25
300	12''	500	460	410	375	28	4	12-25
350	14''	550	520	470	435	34	4	16-25
400	16''	600	580	525	485	36	4	16-30
450	18''	650	640	585	545	40	4	20-30
500	20''	700	705	650	608	44	4	20-34
600	24''	800	840	770	718	48	5	20-41
700	28"	900	910	840	788	50	5	24-41
800	32"	1000	1020	950	898	52	5	24-41
900	36"	1100	1120	1050	998	54	5	28-41
1000	40"	1200	1255	1170	1100	56	5	28-48

PN25
DN	NPS (inch)	L	D	D1	D2	b	f	z-Φd
15	1/2"	130	95	65	45	16	2	4-14
20	3/4"	150	105	75	55	16	2	4-14
25	1''	160	115	85	65	16	2	4-14
32	1-1/4''	180	135	100	78	18	2	4-18
40	1-1/2''	200	145	110	85	18	3	4-18
50	2''	250	160	125	100	20	3	4-18
65	2-1/2''	265	180	145	120	22	3	8-18
80	3''	280	195	160	135	22	3	8-18
100	4''	300	230	190	160	24	3	8-23
125	5''	325	270	220	188	28	3	8-25
150	6''	350	300	250	218	30	3	8-25
200	8''	400	360	310	278	34	3	12-325
250	10''	450	425	370	332	36	3	12-30
300	12''	500	485	430	390	40	4	16-30
350	14''	550	550	490	448	44	4	16-34
400	16''	600	610	550	505	48	4	16-34
450	18''	650	660	600	555	50	4	20-34
500	20''	700	730	660	610	52	4	20-41
600	24''	800	840	770	718	56	5	20-41
700	28"	900	955	875	815	60	5	24-41
800	32"	1000	1070	990	930	64	5	24-48
900	36"	1100	1180	1090	1025	66	5	28-54
1000	40"	1200	1305	1210	1140	68	5	28-58

PN40
DN	NPS (inch)	L	D	D1	D2	b	f	z-Φd
15	1/2"	130	95	65	45	16	2	4-14
20	3/4"	150	105	75	55	16	2	4-14
25	1''	160	115	85	65	16	2	4-14
32	1-1/4''	180	135	100	78	18	2	4-18
40	1-1/2''	200	145	110	85	18	3	4-18
50	2''	250	160	125	100	20	3	4-18
65	2-1/2''	280	180	145	120	22	3	8-18
80	3''	310	195	160	135	22	3	8-18
100	4''	350	230	190	160	24	3	8-23
125	5''	400	270	220	188	28	3	8-25
150	6''	450	300	250	218	30	3	8-25
200	8''	550	375	320	282	38	3	12-30
250	10''	650	445	385	345	42	3	12-34
300	12''	750	510	450	408	46	4	16-34
350	14''	850	570	510	465	52	4	16-34
400	16''	950	655	585	535	58	4	16-41
450	18''	1050	680	610	560	60	4	20-41
500	20''	1150	755	670	612	62	4	20-48
600	24''	1350	890	795	730	62	5	20-54
700	28"	1450	955	900	835	68	5	24-54
800	32"	1650	1135	1030	960	76	5	24-58

PN63
DN	NPS (inch)	L	D	D1	D2	b	f	z-Φd
15	1/2"	170	105	75	55	18	2	4-14
20	3/4"	190	125	90	68	20	2	4-18
25	1''	210	135	100	78	22	2	4-18
32	1-1/4''	230	150	110	82	24	2	4-23
40	1-1/2''	240	165	125	95	24	3	4-23
50	2''	250	175	135	105	26	3	4-23
65	2-1/2''	280	200	160	130	28	3	8-23
80	3''	310	210	170	140	30	3	8-23
100	4''	350	250	200	168	32	3	8-25
125	5''	400	295	240	202	36	3	8-30
150	6''	450	340	280	240	38	3	8-34
200	8''	550	405	345	300	44	3	12-34
250	10''	650	470	400	352	48	3	12-41
300	12''	750	530	460	412	54	4	16-41
350	14''	850	595	525	475	60	4	16-41
400	16''	950	670	585	525	66	4	16-48
450	18''	1050	715	630	570	70	4	20-48
500	20''	1150	800	705	640	70	4	20-54
600	24''	1350	930	820	750	76	5	20-58

PN100
DN	NPS (inch)	L	D	D1	D2	b	f	z-Φd
15	1/2"	170	105	75	55	20	2	4-14
20	3/4"	190	125	90	68	22	2	4-18
25	1''	210	135	100	78	24	2	4-18
32	1-1/4''	230	150	110	82	24	2	4-23
40	1-1/2''	240	165	125	95	26	3	4-23
50	2''	250	195	145	112	28	3	4-25
65	2-1/2''	280	220	170	138	32	3	8-25
80	3''	310	230	180	148	34	3	8-25
100	4''	350	265	210	172	38	3	8-30
125	5''	400	310	250	210	42	3	8-34
150	6''	450	350	290	250	46	3	12-34
200	8''	550	430	360	312	54	3	12-41
250	10''	650	500	430	382	60	3	12-41
300	12''	750	585	500	442	70	4	16-48
350	14''	850	655	560	498	76	4	16-54
400	16''	920	715	620	558	80	4	16-54
450	18''	1050	770	675	615	84	4	16-58
500	20''	1150		724	635	89	4	24-54
