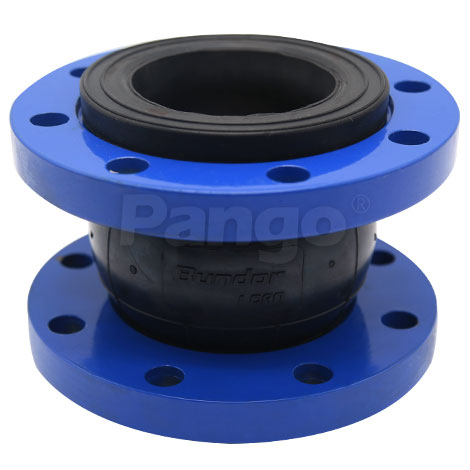

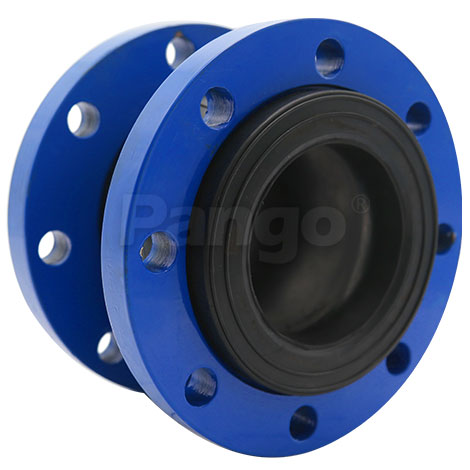

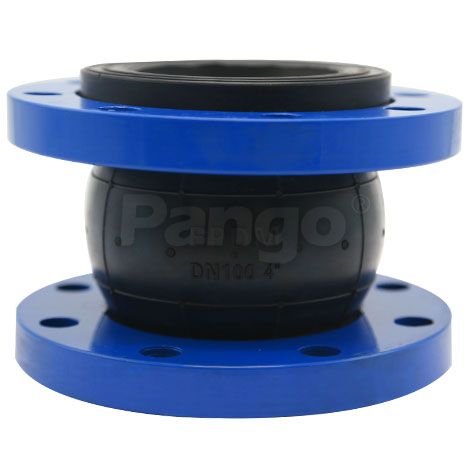

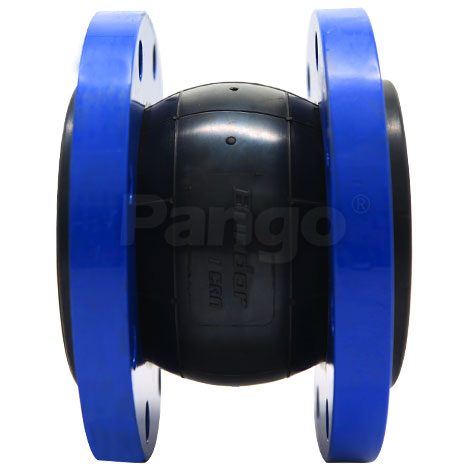

EPDM Flexible Rubber Joint
Size Range: 1.5''-24''/DN40-DN600
Pressure: 1.0/1.6MPa
Body Materials (mm): EPDM composites/natural rubber /NBR/PTFE/ silicone rubber
Seat Materials: Carbon steel
Features: Applicable medium:Water,air, oil
Suitable temperature:-15℃ to 80 ℃
Application field: Municipal construction, chemical industry, water treatment, electricity, petroleum, water supply and drainage, water conservancy projects.
Product advantages

1.Flange and rubber ball wear less
The radian of flange inner forged surface is 67 degrees, which reduces the damage caused by friction between flange and rubber ball by more than 95%.

2.Flange is not easy to rust
Flange after baking paint treatment, in the humid environment is not easy to rust.

3.Increased tightness by 10%.

4.Longer life
Rubber joint flanges adopt standard flanges, the service life is increased more than 5 years.

5.The content of EPDM is higher
EPDM rubber balls, containing more than 40% of rubber, longer than conventional rubber life.

6.High seismic coefficient
Rubber ball added steel wire, anti - twist, anti - seismic coefficient increased 10%.

7.Exceed national standards
The number of rubber ball inner lining exceeds the standard requirement.

8.Prevent the ball from pulling
The thickness of both ends of the rubber ball increased by 10mm, and the steel ball was added to prevent the ball from pulling.

9.Better sealing effect
The rubber ball is connected with German waterline and the sealing effect is improved by 30%.

Parameters


DNNPSLPN10
PN16
PN25

ΦAΦBΦAΦBΦAΦB
401  1/2''95150110150110150110
502''105165125165125165125
652  1/2''115185145185145185145
803''135200160200160200160
1004''150220180220180235190
1255''165250210250210270220
1506''180285240285240300250
2008''210340295340295360310
25010''230395350405355425370
30012''245445400460410485430
35014''255505460520470555490
40016''255565515580525620550
45018''255615565640585670600
50020''255670620715650730660
60024''260780725840770845770
