Pango Pump and Valve Manufacturing (Shandong ) Co., Ltd.

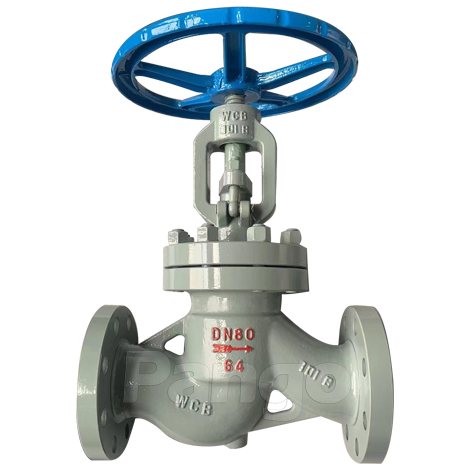

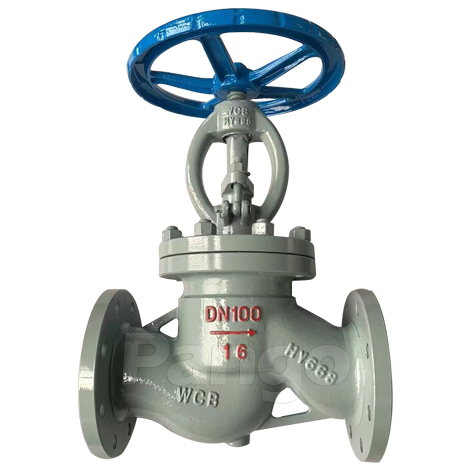

Cast Steel Globe Valve: Size Range: DN15-800; Pressure: PN10-PN100; Body Material: WCB; Seat Material: 13Cr; Disc Material: WCB; Stem Material: 2Cr13; Features: The valve body is solid. High precision and quality. The suitable medium includes water,steam,oil. It can be used in water, sewage, construction, petroleum, chemical, food, medicine, textile, Power, Marine, metallurgy, energy systems

Chat online

Mail us

Product advantages

1. Precision casting valve body. Standard WCB material, fine appearance, no trachoma. Each batch of castings have furnace number.

2. Use CNC lathes to machine internals. After the machining, the valve body is shot blasted twice, and the appearance is beautiful.

3. The same diameter valve has heavier weight compared with other manufacturers.

4. the valve seat material is cr-based stainless steel + surfacing 507 molybdenum, increasing the wear resistance of the valve seat.

5. The valve cover and the valve stem are in contact with the valve to prevent the leakage.

6. The valve stem is processed by cyclone milling to avoid the difficulty of switching due to the bending of the valve stem.

7. Each valve is factory tested for pressure according to national standards.

8. From the raw material to the finished product, every process has strict inpection.

9.Pango brand product quality is covered by China Pacific Insurance with two million dollars. Two years warranty, pay two back if one bad within two years. Any quality problems of the product itself, we will pay without conditions.

Parameters

Parameter Information：

1. Executive standard：

Name	Design and manufacture	Face to face Length	Pressure Test	End Flange
Reference Standard	GB/T 12235	GB/T 12221-2005	JB/T 9092-1999	GB/T 9113-2010/EN1092-1

2. Material of Main Parts:

Name	1-Body	2-Seat	3-Disc	4-Stem	5-Handwheel
Material	WCB	13Cr	WCB	2Cr13	DI

3. Dimensions：

Size		PN10
DN	NPS (inch)	L	D	D1	D2	z-Φd
15	1/2"	130	95	65	45	4-14
20	3/4"	150	105	75	55	4-14
25	1''	160	115	85	65	4-14
32	1-1/4''	180	135	100	78	4-18
40	1-1/2''	200	145	110	85	4-18
50	2''	230	160	125	100	4-18
65	2-1/2''	290	180	145	120	4-18
80	3''	310	196	160	135	4-18
100	4''	350	215	180	155	8-18
125	5''	400	245	210	185	8-18
150	6''	480	280	240	210	8-23
200	8''	600	335	295	265	8-23
250	10''	650	390	350	320	12-23
300	12''	750	440	400	368	12-23
350	14''	850	500	460	428	16-23
400	16''	950	565	515	482	16-26
450	18''	1050	615	656	532	20-26
500	20''	1150	670	620	585	20-26
600	24''	1350	780	725	685	20-30
700	28"	1450	896	840	800	24-30
800	32"	1650	1010	950	905	24-34

Size		PN16
DN	NPS (inch)	L	D	D1	D2	z-Φd
15	1/2"	130	95	65	45	4-14
20	3/4"	150	105	75	55	4-14
25	1''	16	115	85	65	4-14
32	1-1/4''	180	135	100	78	4-18
40	1-1/2''	200	145	110	85	4-18
50	2''	230	160	125	100	4-18
65	2-1/2''	290	180	145	120	4-18
80	3''	310	195	160	135	8-18
100	4''	350	215	180	155	8-18
125	5''	400	245	210	185	8-18
150	6''	480	280	240	210	8-23
200	8''	600	335	295	265	12-23
250	10''	650	405	355	320	12-25
300	12''	750	460	410	375	12-25
350	14''	850	520	470	435	16-25
400	16''	950	580	525	485	16-30
450	18''	1050	640	585	545	20-30
500	20''	1150	705	650	608	20-34
600	24''	1350	840	770	718	20-41
700	28"	1450	910	840	788	24-41
800	32"	1650	1020	950	898	24-41

Size		PN25
DN	NPS (inch)	L	D	D1	D2	z-Φd
15	1/2"	130	95	65	45	4-14
20	3/4"	150	105	75	55	4-14
25	1''	160	115	85	65	4-14
32	1-1/4''	180	135	100	78	4-18
40	1-1/2''	200	145	110	85	4-18
50	2''	230	160	125	100	4-18
65	2-1/2''	290	180	145	120	8-18
80	3''	310	195	160	135	8-18
100	4''	350	230	190	160	8-23
125	5''	400	270	220	188	8-25
150	6''	480	300	250	218	8-25
200	8''	600	360	310	278	12-325
250	10''	650	425	370	332	12-30
300	12''	750	485	430	390	16-30
350	14''	850	550	490	448	16-34
400	16''	950	610	550	505	16-34
450	18''	1050	660	600	555	20-34
500	20''	1150	730	660	610	20-41
600	24''	1350	840	770	718	20-41
700	28"	1450	955	875	815	24-41
800	32"	1650	1070	990	930	24-48

Size		PN40
DN	NPS (inch)	L	D	D1	D2	z-Φd
15	1/2"	130	95	65	45	4-14
20	3/4"	150	105	75	55	4-14
25	1''	160	115	85	65	4-14
32	1-1/4''	180	135	100	78	4-18
40	1-1/2''	200	145	110	85	4-18
50	2''	230	160	125	100	4-18
65	2-1/2''	290	180	145	120	8-18
80	3''	310	195	160	135	8-18
100	4''	350	230	190	160	8-23
125	5''	400	270	220	188	8-25
150	6''	480	300	250	218	8-25
200	8''	600	375	320	282	12-30
250	10''	650	445	385	345	12-34
300	12''	750	510	450	408	16-34
350	14''	850	570	510	465	16-34
400	16''	950	655	585	535	16-41
450	18''	1050	680	610	560	20-41
500	20''	1150	755	670	612	20-48
600	24''	1350	890	795	730	20-54
700	28"	1450	955	900	835	24-54
800	32"	1650	1135	1030	960	24-58

Size		PN63
DN	NPS (inch)	L	D	D1	D2	z-Φd
15	1/2"	165	105	75	55	4-14
20	3/4"	190	125	90	68	4-18
25	1''	210	135	100	78	4-18
32	1-1/4''	230	150	110	82	4-23
40	1-1/2''	260	165	125	95	4-23
50	2''	300	175	135	105	4-23
65	2-1/2''	340	200	160	130	8-23
80	3''	380	210	170	140	8-23
100	4''	430	250	200	168	8-25
125	5''	500	295	240	202	8-30
150	6''	550	340	280	240	8-34
200	8''	650	405	345	300	12-34
250	10''	775	470	400	352	12-41
300	12''	900	530	460	412	16-41
350	14''	1025	595	525	475	16-41
400	16''	1150	670	585	525	16-48
500	20''	1400	800	705	640	20-54

Size		PN100
DN	NPS (inch)	L	D	D1	D2	z-Φd
15	1/2"	165	105	75	55	4-14
20	3/4"	190	125	90	68	4-18
25	1''	210	135	100	78	4-18
32	1-1/4''	230	150	110	82	4-23
40	1-1/2''	260	165	125	95	4-23
50	2''	300	195	145	112	4-25
65	2-1/2''	340	220	170	138	8-25
80	3''	380	230	180	148	8-25
100	4''	430	265	210	172	8-30
125	5''	500	310	250	210	8-34
150	6''	550	350	290	250	12-34
200	8''	650	430	360	312	12-41
250	10''	775	500	430	382	12-41
300	12''	900	585	500	442	16-48
350	14''	1025	655	560	498	16-54
400	16''	1150	715	620	558	16-54
