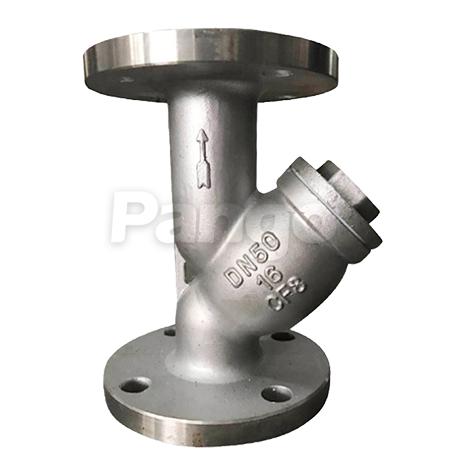

- Stainless Steel Y-strainer
- Size Range: DN50-DN600
- Pressure: PN16
- Body Material: CF8
- Features: The body is solid and high quality. It can be used in municipal construction, water conservancy projects, electricity, water supply and drainage, water treatment, chemical industry.
Product advantages
1. Precision casting body, fine appearance, no trachoma.
2. Heavy type valve body.
3. Stainless steel 304 filter screen.
4. Full welding process for filter screen, the opening rate of screen reaches 80%. Wear and corrosion resistance are improved.
5. Each valve will be inspected for shell and seal pressure before leaving factory.
Parameters
Parameter Information：
1. Executive standard：
| Name | Design and manufacture | Face to face Length | Pressure Test | End flange |
| Reference standard | SH/T 3411-1999 | GB/T 14382-2008 | GB/T 13927-2008/API 598 | HG/T 20592-2009(PN series)/HG/T 20615-2009(Class series) |
2. Material of Main Parts:
| Name | Body | Filter Screen | End cover |
| Material | CF8 | 304 | CF8 |
| Size | L | PN16 | Class150 | |||
| DN | NPS(Inch) | ΦA | ΦB | ΦA | ΦB | |
| 50 | 2'' | 215 | 165 | 125 | 150 | 120.7 |
| 65 | 2 1/2'' | 250 | 185 | 145 | 180 | 139.7 |
| 80 | 3'' | 285 | 200 | 160 | 190 | 152.4 |
| 100 | 4'' | 305 | 220 | 180 | 230 | 190.5 |
| 125 | 5'' | 345 | 250 | 210 | 255 | 215.9 |
| 150 | 6'' | 385 | 285 | 240 | 280 | 241.3 |
| 200 | 8'' | 487 | 340 | 295 | 345 | 298.5 |
| 250 | 10'' | 454 | 405 | 355 | 405 | 362 |
| 300 | 12'' | 605 | 460 | 410 | 485 | 431.8 |
| 350 | 14'' | 680 | 520 | 470 | 535 | 476.3 |
| 400 | 16'' | 757 | 580 | 525 | 595 | 539.8 |
| 450 | 18'' | 850 | 640 | 585 | 635 | 577.9 |
| 500 | 20'' | 895 | 715 | 650 | 700 | 635 |
| 600 | 24'' | 1070 | 840 | 770 | 815 | 749.3 |
