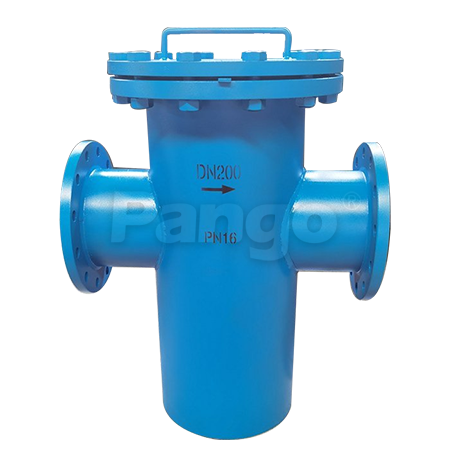

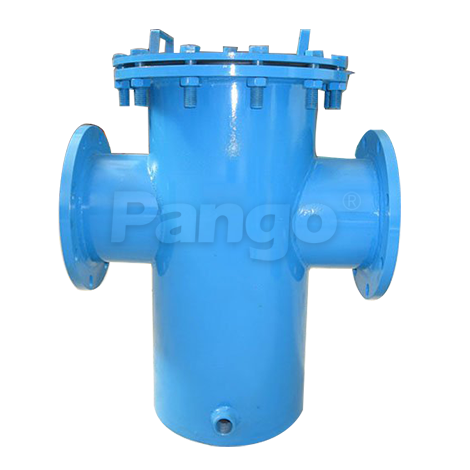

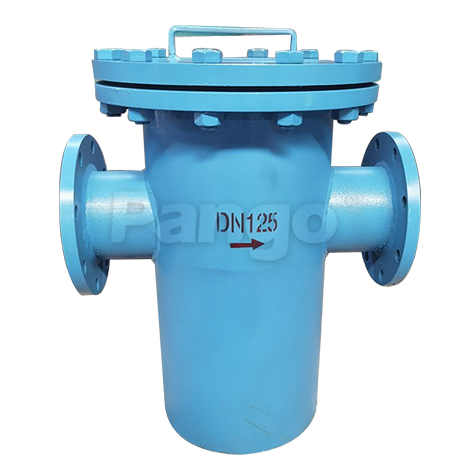

- Basket strainer
- Size Range: DN15-DN400
- Pressure: PN16
- Body Material: carbon steel/ stainless steel
- Features: The body is solid and good quality. The suitable medium includes Water, steam, oil, etc. It can be used in water treatment, petrochemical, environmental protection etc
1. The body is made of high-quality carbon steel, the material composition and performance meet the standards.
2. The screen is made of stainless steel 304, which is corrosion-resistant and durable;
3. The welding adopts robot automatic welding to form at one time, the welding seam is flat and firm;
4. The number of filter meshes can be customized according to customer needs;
5. Using flexible graphite sealing gasket, high temperature resistance and good sealing performance;
6. Each strainer will do pressure test according to national standards before leaving the factory.
Parameter Information:
1. Executive standard:
Name | Design and manufacture | Pressure Test | End flange | |
Reference standard | SH/T 3411-2017 | GB/T 13927-2008 | HG/T 20592-2009 |
2. Material of Main Parts:
Name | 1-sewage outlet | 2-Body | 3-screen | 7-gasket |
Material | Q235 | Q235 | 304 | flexible graphite |
3. Dimensions:
Size(DN) | NPS | L | H | H1 | ΦD | ΦD1 | ΦD2 | n-ΦI |
15 | 1/2'' | 180 | 260 | 160 | 76 | 95 | 65 | 4-14 |
20 | 3/4'' | 180 | 260 | 160 | 76 | 105 | 75 | 4-14 |
25 | 1'' | 180 | 260 | 160 | 76 | 115 | 85 | 4-14 |
32 | 1 1/4'' | 200 | 270 | 160 | 76 | 140 | 100 | 4-18 |
40 | 1 1/2'' | 260 | 300 | 170 | 108 | 150 | 110 | 4-18 |
50 | 2'' | 260 | 300 | 170 | 108 | 165 | 125 | 4-18 |
65 | 2 1/2'' | 330 | 360 | 240 | 133 | 185 | 145 | 8-18 |
80 | 3'' | 340 | 400 | 250 | 159 | 200 | 160 | 8-18 |
100 | 4'' | 400 | 470 | 300 | 219 | 220 | 180 | 8-18 |
125 | 5'' | 480 | 550 | 360 | 273 | 250 | 210 | 8-18 |
150 | 6'' | 500 | 630 | 420 | 273 | 285 | 240 | 8-22 |
200 | 8'' | 560 | 780 | 530 | 325 | 340 | 295 | 12-22 |
250 | 10'' | 660 | 930 | 640 | 426 | 405 | 355 | 12-26 |
300 | 12'' | 750 | 1200 | 840 | 457 | 460 | 410 | 12-26 |
350 | 14'' | 810 | 1370 | 920 | 508 | 520 | 470 | 16-26 |
400 | 16'' | 900 | 1500 | 950 | 559 | 580 | 525 | 16-30 |
