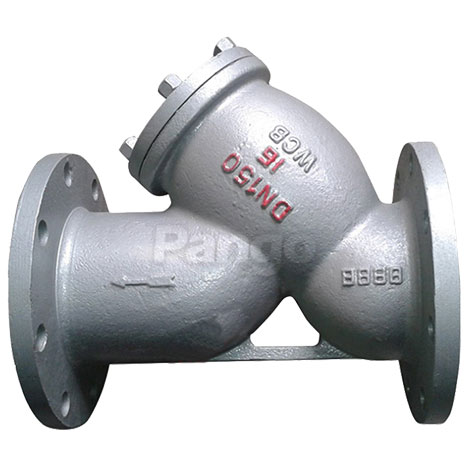

- Carbon Steel Y-strainer
- Size Range: DN50-DN600
- Pressure: PN16
- Body Materials (mm): WCB
- Features: Name: Carbon Steel Y-strainer
Size: DN50-DN600
Pressure: PN16
Working temperature: 0℃～200℃
Suitable medium: Water, steam, oil, etc
Body: WCB
Application: Municipal construction, water conservancy projects, electricity, water supply and drainage.
Product advantages
1. Precision casting body, fine appearance, no trachoma.
2. Heavy type valve body.
3. Stainless steel 304 filter screen.
4. Full welding process for filter screen, the opening rate of screen reaches 80%. Wear and corrosion resistance are improved.
5. Each valve will be inspected for shell and seal pressure before leaving factory.
Parameters
| Executive standard： | ||||||
| Name | Design and manufacture | Face to face Length | Pressure Test | End flange | ||
| Reference standard | SH/T 3411-1999 | GB/T 14382-2008 | GB/T 13927-2008 API 598 | HG/T 20592-2009(PN series) HG/T 20615-2009(Class series) | ||
| Material of Main Parts: | ||||||
| Name | Body | Filter Screen | End cover | |||
| Material | WCB | 304 | WCB | |||
| Dimensions： | ||||||
| Size | L | PN16 | Class150 | |||
| DN | NPS(Inch) | ΦA | ΦB | ΦA | ΦB | |
| 50 | 2'' | 215 | 165 | 125 | 150 | 120.7 |
| 65 | 2 1/2'' | 250 | 185 | 145 | 180 | 139.7 |
| 80 | 3'' | 285 | 200 | 160 | 190 | 152.4 |
| 100 | 4'' | 305 | 220 | 180 | 230 | 190.5 |
| 125 | 5'' | 345 | 250 | 210 | 255 | 215.9 |
| 150 | 6'' | 385 | 285 | 240 | 280 | 241.3 |
| 200 | 8'' | 487 | 340 | 295 | 345 | 298.5 |
| 250 | 10'' | 454 | 405 | 355 | 405 | 362 |
| 300 | 12'' | 605 | 460 | 410 | 485 | 431.8 |
| 350 | 14'' | 680 | 520 | 470 | 535 | 476.3 |
| 400 | 16'' | 757 | 580 | 525 | 595 | 539.8 |
| 450 | 18'' | 850 | 640 | 585 | 635 | 577.9 |
| 500 | 20'' | 895 | 715 | 650 | 700 | 635 |
| 600 | 24'' | 1070 | 840 | 770 | 815 | 749.3 |
