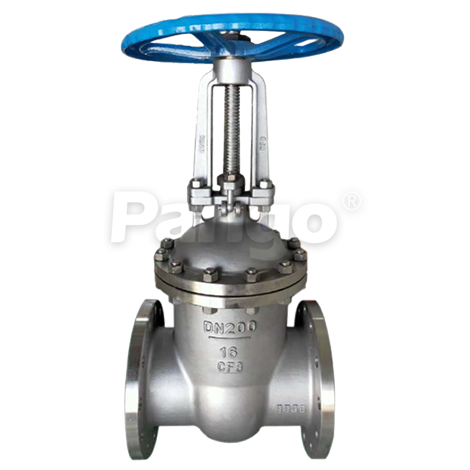

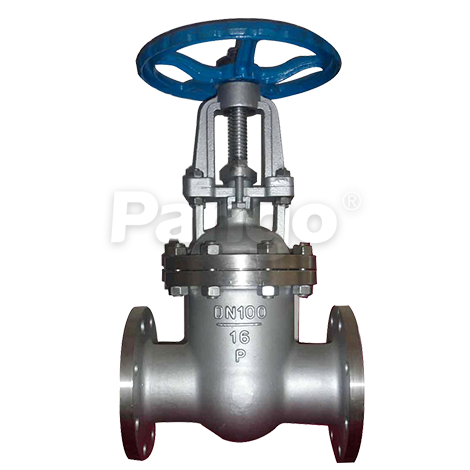

Stainless Steel Gate Valve: Size Range: DN50-DN400; Pressure: PN16/150LB; Body Material: SS304; Seat Material: SS/alloy steel; Disc Material: CF3/ CF3M/CF8/CF8M; Stem Material: 2Cr13/ 304/316; Features: Water treatment, petrochemical, food and medicine, electric energy, metallurgy, etc.

Mail us

Product advantages

1. Precision casting valve body, smooth appearance, 2 times shot blasting after appearance processing, no trachoma.

2. CNC lathe processing of internal parts, guaranteed accuracy.

3. Heavy type valve body.

4. Inverted seal treatment of contact surface between bonnet and stem to avoid leakage.

5. The corrosion resistance was improved due to the body adopt pickling passivation treatment.

6. Each valve will be inspected for shell and seal pressure before leaving factory.

Parameters

Parameter Information：

1. Executive standard：

Name	Design	Face to Face	Pressure Test	Connect Flange
Reference standard	GB/T 12234/API 600	GB/T 12221/ASME B16.10	GB/T 13927/API 598	JB/T 79/ASME B16.5

2. Material of Main Parts:

Name	Body	Disc	Stem	Seat	Handwheel
Material	SS304	SS304	SS304	SS304	DI

3. Dimensions：

DN		PN16				150LB
DN	NPS（英寸）	L	D	D1	Z-Φd	L	D	D1	Z-Φd
50	2''	250	160	125	4-18	178	152	120.5	4-19
65	2 1/2''	265	180	145	4-18	190	178	139.5	4-19
80	3''	280	195	160	8-18	203	190	152.5	4-19
100	4''	300	215	180	8-18	229	229	190.5	8-19
125	5''	325	245	210	8-18	254	254	216	8-22
150	6''	350	280	240	8-22	267	279	241.5	8-22
200	8''	400	335	295	12-22	292	343	298.5	8-22
250	10''	450	405	355	12-26	330	406	362	12-25
300	12''	500	460	410	12-26	356	483	432	12-25
350	14''	550	520	470	16-26	381	533	476	12-29
400	16''	600	580	525	16-30	406	597	540	16-29
