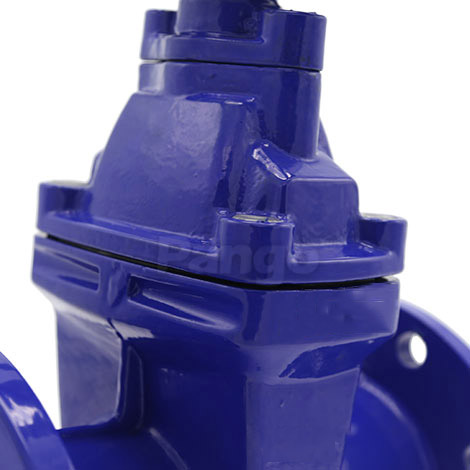

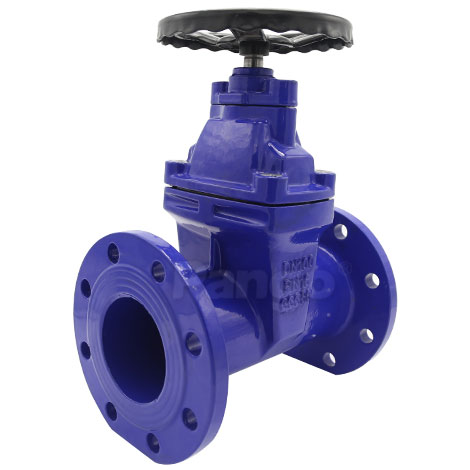

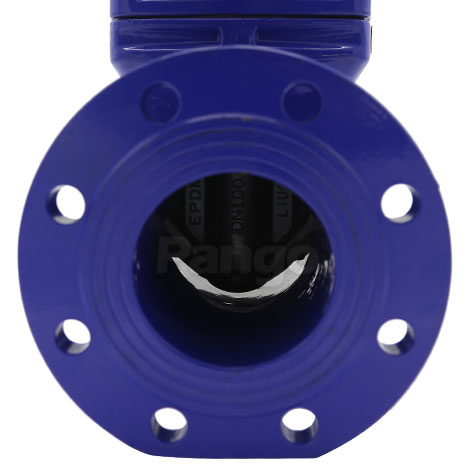

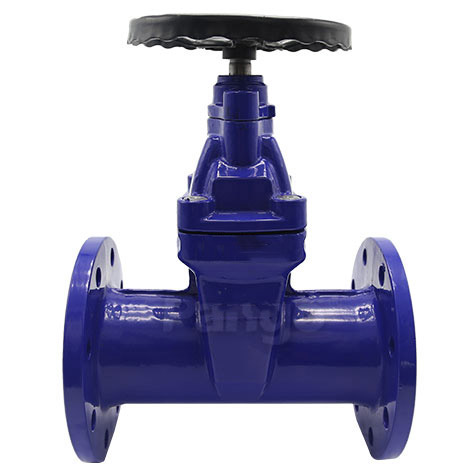

- DIN 3352 F5 Resilient Seated Flanged Gate Valve
- Size Range: DN50-DN1200
- Pressure: 10K
- Body Material: DI
- Seat Material: NBR/EPDM/PTFE
- Disc Material: DI+NBR/EPDM/PTFE
- Stem Material: 45#/2Cr13/ SS304/316
- Features: Low torque operation
Rubber encapsulated wedge
Clockwise closing direction
Fusion bonded epoxy coated inside and outside
1.The body is ductile iron,high level than national stanard.Tensile strength is 450Mpa,elongation is large than 10%,can not be broken easily when transport.
2. Both inner and out part is epoxy coating, the thickness is 250μm minimum,can prevent rust well,can be used in sewage system.
3.The wedge is coated with EPDM, the EPDM proportion can reach 50%,steable and good resilient.
4. 3 O rings are used on 2Cr13 stem,can reduce friction,prevent leakage,can change sealing ring with stop water.
5.The stem use brass, operate easily,prevent block.
6.Every link, from workblank to the finished product packaging will be inspected strickly.
7.Pango Product quality is covered by China Pacific Insurance with two million dollors. Bundor Valve, Two Years Warranty, Pay Two Back If One Bad. Any quality problems of the product itself, we will pay without conditions.
Parameter Information:
Demension:
DN | NPS | L | ΦA | ΦB | ΦC |
50 | 2'' | 150 | 165 | 125 | 102 |
65 | 2 1/2'' | 170 | 185 | 145 | 122 |
80 | 3'' | 180 | 200 | 160 | 138 |
100 | 4'' | 190 | 220 | 180 | 158 |
125 | 5'' | 200 | 250 | 210 | 188 |
150 | 6'' | 210 | 285 | 240 | 212 |
200 | 8'' | 230 | 340 | 295 | 268 |
250 | 10'' | 250 | 405 | 355 | 320 |
300 | 12'' | 270 | 460 | 410 | 378 |
350 | 14'' | 290 | 520 | 470 | 438 |
400 | 16'' | 310 | 580 | 525 | 490 |
450 | 18'' | 330 | 640 | 585 | 550 |
500 | 20'' | 350 | 715 | 650 | 610 |
600 | 24'' | 390 | 840 | 770 | 725 |
700 | 28'' | 430 | 910 | 840 | 795 |
800 | 32'' | 470 | 1025 | 950 | 900 |
900 | 36'' | 510 | 1125 | 1050 | 1000 |
1000 | 40'' | 550 | 1255 | 1170 | 1115 |
1200 | 48'' | 630 | 1485 | 1390 | 1330 |
