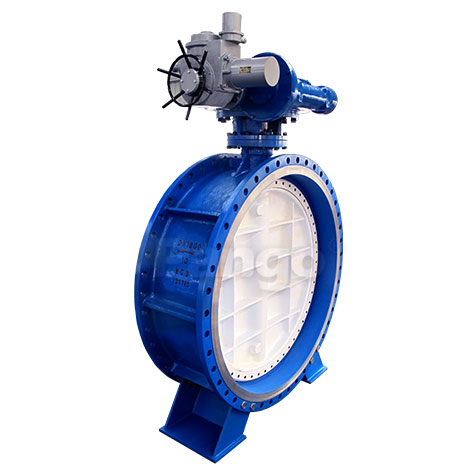

Electric Triple Eccentric Butterfly Valve
Size Range: DN50-DN1200
Pressure: PN16/150LB
Body Materials (mm): WCB
Seat Materials: 13Cr/304/316
Disc Materials: WCB/CF3/ CF3M/CF8/CF8M
Stem Materials: 2Cr13/304/316
Applicable medium:Gas, dust gas, flue gas, etc.
Suitable temperature:-29~425℃
Application field:Environmental protection, metallurgy, chemical industry, electric power, building materials, etc.
Product advantages

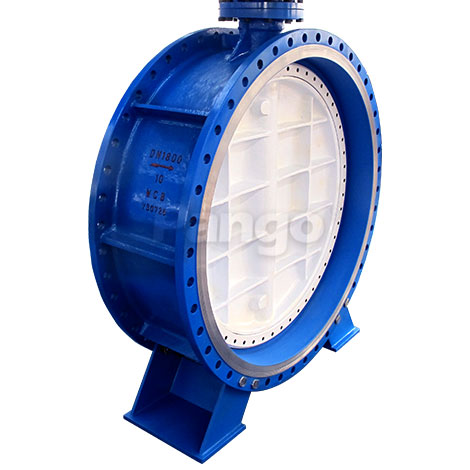

Precision casting valve body

Precision casting valve body. Qualified WCB material. Fine appearance, no sand hole.

High precision

Heavy valve body. The valve disc is processed by CNC precision machine with high precision.

Excellent sealing performance

The sealing ring of the valve body adopts soft and hard multi-layer metal ring, which has the double advantages of metal and elastic seal, to ensure excellent sealing performance in high temperature and low temperature environment.

SS stem

Shaft made of stainless steel, through special treatment to double the strength of the shaft.

Shell and seal pressure test

Each valve will be inspected for shell and seal pressure before leaving factory.

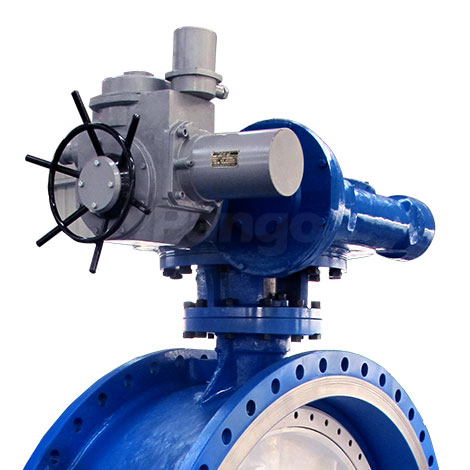

IP65 protection level

The protection level of electric actuator reaches IP65.


20 butterfly valve.png

Optional configurationBodySeat SealDiscShaftActuator
WCB/CF3/ CF3M/CF8/ CF8M13Cr/304/316WCB/CF3/ CF3M/CF8/CF8M/2Cr13/304/316Worm gear/Electric/Pneumatic

NameDesign and manufactureFace to face LengthInspection StandardEnd  Flange
Reference standardJB/T 8527
API 609
GB/T 12221
API 609
GB/T 13927
API 598
GB/T 9113
ASME B16.5


Name10-Body4-Seat Seal8-Disc7-Shaft24-Electric actuator

50 2''1081254-18120.74-19
65 2  1/2''1121454-18139.74-19
80 3''1141608-18152.44-19
100 4''1271808-18190.58-19
125 5''1402108-18215.98-22
150 6''1402408-22241.38-22
200 8''15229512-22298.58-22
250 10''16535512-2636212-25
300 12''17841012-26431.812-25
350 14''19047016-26476.312-29
400 16''21652516-30539.816-29
450 18''22258520-30577.916-32
500 20''22965020-3363520-32
600 24''26777020-36749.320-35
700 28''29284024-36

800 32''31895024-39

900 36''330105028-39

1000 40''410117028-42

1200 48''470139032-48
